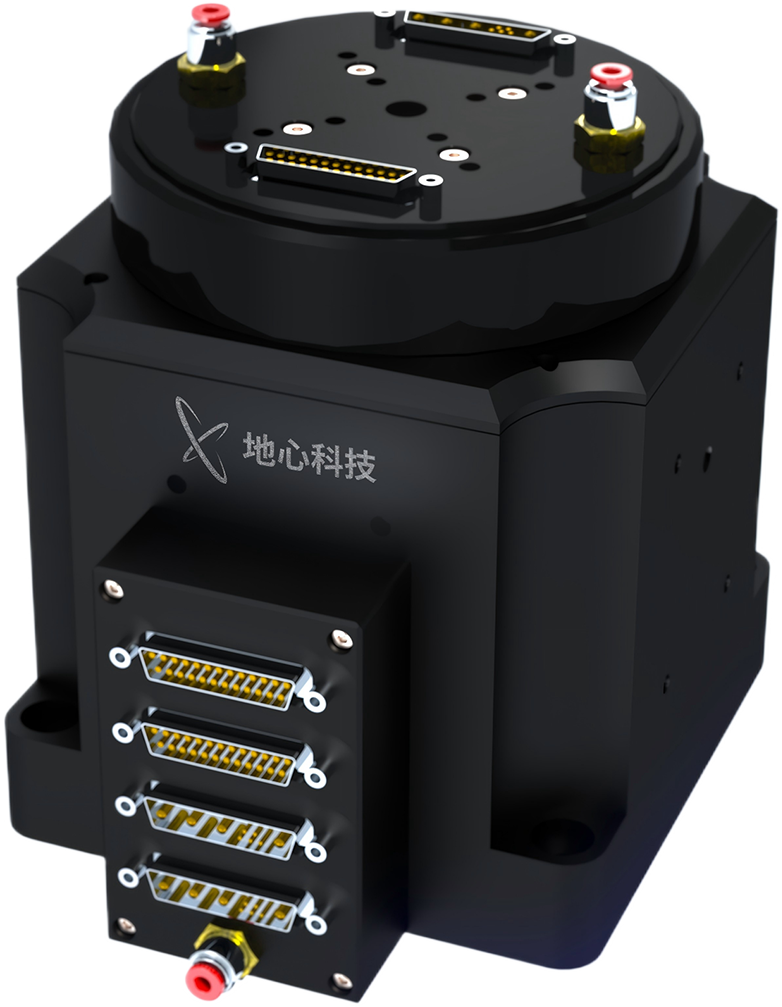

The HRMS series is a high‑precision 360° continuous rotary stage powered by a direct‑drive motor with precision ball bearings, delivering excellent dynamic performance and positioning accuracy. Featuring outstanding industrial design with a refined and well‑proportioned layout, it offers table diameters of 150 mm, 200 mm, and 260 mm. Equipped with high‑precision circular grating feedback, it achieves positioning accuracy of ±2.5 arcsec and repeatability below ±1 arcsec, with a maximum load capacity of 200 kg—demonstrating outstanding mechanical performance.

The HRMS series features a large‑diameter dual‑bearing design that ensures minimal tilt error, high system stiffness, and excellent repeatability—without performance degradation even under heavy loads. With linear amplifiers in a vibration‑isolated laboratory environment, it achieves in‑position stability and minimum step size below 0.05 arcsec.

The HRMS series offers flexible configuration options, including various table diameters and custom mounting hole patterns. It is available with slip rings and rotary unions for easy integration of customer components, preventing cable tangling during continuous rotation. Thanks to its high accuracy, repeatability, and speed stability, the HRMS is widely used in testing MEMS, gyroscopes, avionics, accelerometers, and other inertial components, as well as specialized sensor testing.
