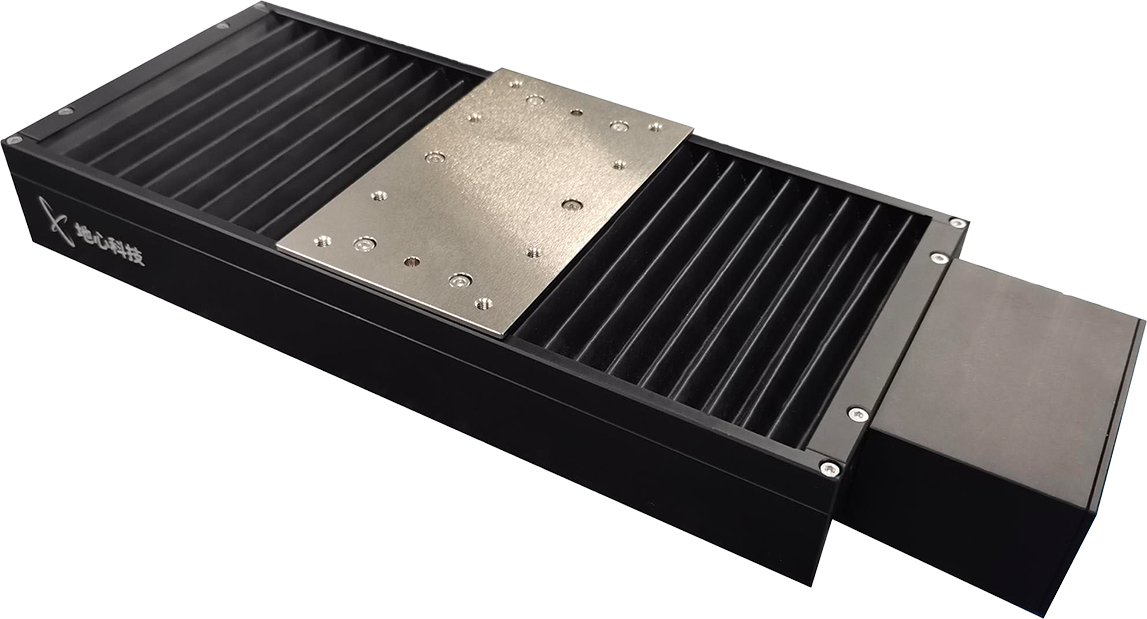

VXC115 Series
High‑Flexibility Leadscrew‑Driven Linear Stage
The VXC115 series is a high‑precision positioning stage driven by an AC brushless servo motor with a ball screw, featuring a low profile and compact design. It offers near‑direct‑drive accuracy with greater flexibility in use: it can serve as a horizontal linear axis or be mounted vertically as a Z‑axis alongside other stages. Horizontal load capacity is 30 kg; side‑mounted or vertical load capacity is 15 kg. Feedback is provided by a rotary encoder with resolution below 0.5 μm.
As a high‑precision screw‑driven stage, the VXC115 is distinguished by its low profile, compactness, and rugged durability—with a travel life exceeding 2500 km. It delivers high resolution and repeatability, making it ideal for laser processing, bio‑3D printing, automated microscope observation systems, and high‑precision alignment applications.
Download the Manual
Get a Quote
Product Features
Hard-Core Capabilities Drive Exceptional Performance
Servo motor with ball screw drive, 2 mm lead
Low profile and compact design
Rugged mechanical construction
(flexible configuration for XY or XYZ three‑axis subsystems)
Stroke range: 60 mm to 160 mm
Rotary encoder or linear scale direct feedback options available
AC servo motor drive
Specifications
Gain a comprehensive understanding of product information
| 平台型号\Model | VXC115-060 | VXC115 -110 | VXC115-160 | |
| 有效行程\Travel | 60 mm | 110 mm | 160 mm | |
| 定位精度\Accuracy | 光栅尺（Direct Encoder） | ±0.6 μm | ±0.8 μm | ±1.5 μm |
| 旋转编码器（Rotary Encoder） | ±2.0 μm | ±2.0 μm | ±2.0 μm | |
| 重复定位精度\Repeatability | 光栅尺（Direct Encoder） | ±0.3 μm | ±0.4 μm | ±0.5 μm |
| 编码器（Rotary Encoder） | ±1.0 μm | ±1.0 μm | ±1.0 μm | |
| 俯仰\Pitch | 6 arc sec | 10 arc sec | 15 arc sec | |
| 偏摆\Yaw | 6 arc sec | 10 arc sec | 15 arc sec | |
| 直线度\Straightness | ±2.0 µm | ±3.0 µm | ±3.5 µm | |
| 平面度\Flatness | ±2.0 µm | ±3.0 µm | ±3.5 µm | |
| 平台重量\Stage Mass(No Motor) | 2.2 kg | 2.6 kg | 2.8 kg | |
| 最大负载\Load Capacity（1） | 水平 | 30 kg | ||
| 竖直 | 15 kg | |||
| 分辨率\Resolution（2） | 光栅尺（Direct Encoder） | 0.05 μm | ||
| 编码器（Rotary Encoder） | 0.5 μm | |||
| 最大速度\Maximum Speed（3） | 50 mm/s | |||
| 平台材质\Material | 铝 | |||
备注：
（1）有效载荷指标适用于单轴系统，并受限于2500公里行程的丝杠和滚珠寿命；
（2）机械最小步进量；
（3）使用占空比过高可能会影响精度；
（4）默认测试点位置为台面上方25 mm，单轴指标，多轴系统的性能指标与实际载荷和工作点位置有关；
（5）多轴配置或定制应用指标咨询厂商。
Model Selection and Configuration
Scientifically Formulated, Precisely Tailored to Your Needs
| 产品系列 | 行程（mm） | 反馈 |
| VXC115 | -060 | -DLAS |
| -110 | -TTL1000 | |
| -160 |
行程选项
| -060 | 60 mm |
| -110 | 110 mm |
| -160 | 160 mm |
反馈选项
| -DLAS | 1Vpp 光栅尺模拟量反馈 |
| -TTL1000 | 4000x旋转编码器反馈 |
Product Dimensions
Precise measurements—dimensions are clear at a glance
VXC115-060
VXC115-160
备注：
（1）单位：mm；
（2）线缆接头未显示。
