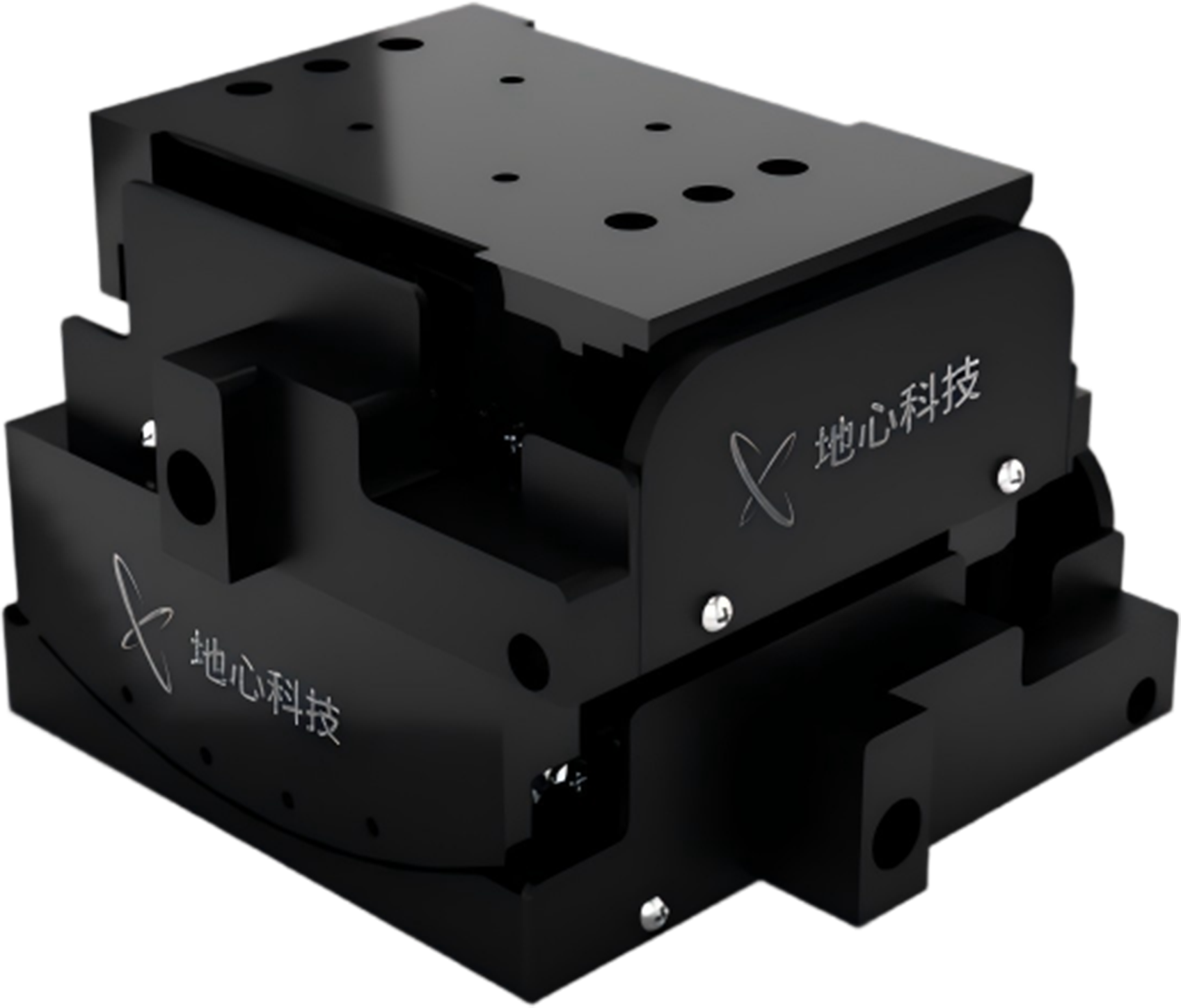

The ART130‑20G series is a high‑precision direct‑drive tip‑tilt stage, powered by a rotary motor with precision crossed‑roller guides, delivering excellent dynamic performance and positioning accuracy—with an unloaded crossover frequency exceeding 100 Hz. Featuring outstanding industrial design with a compact and refined form, it offers selectable rotation radii of 50 mm and 90 mm. As a key complement to the ART130 series, the ART130‑20G can be used as a single axis or stacked in pairs to form a dual‑axis tip‑tilt system. For complex multi‑axis coupling or packaging applications, it can be combined with ART130 series XYZ linear stages, the RSML100 high‑precision rotary stage, and a dual‑axis ART130‑20G to form an X‑Y‑Z‑Tx‑Ty‑Tz six‑axis serial system—providing a complete 6‑DOF solution for full‑range ultra‑precision positioning and angular adjustment.

Despite its compact and refined construction, the ART130‑20G delivers strong driving capability, with an unloaded maximum speed exceeding 150°/s. When equipped with linear amplifiers in a vibration‑isolated laboratory environment, it achieves in‑position stability and minimum step size below 0.5 arcsec. Typical applications include metrology inspection, fiber‑optic coupling, biological sample processing, precision manufacturing, and precision micro‑assembly—wherever arcsec‑level positioning is required.
