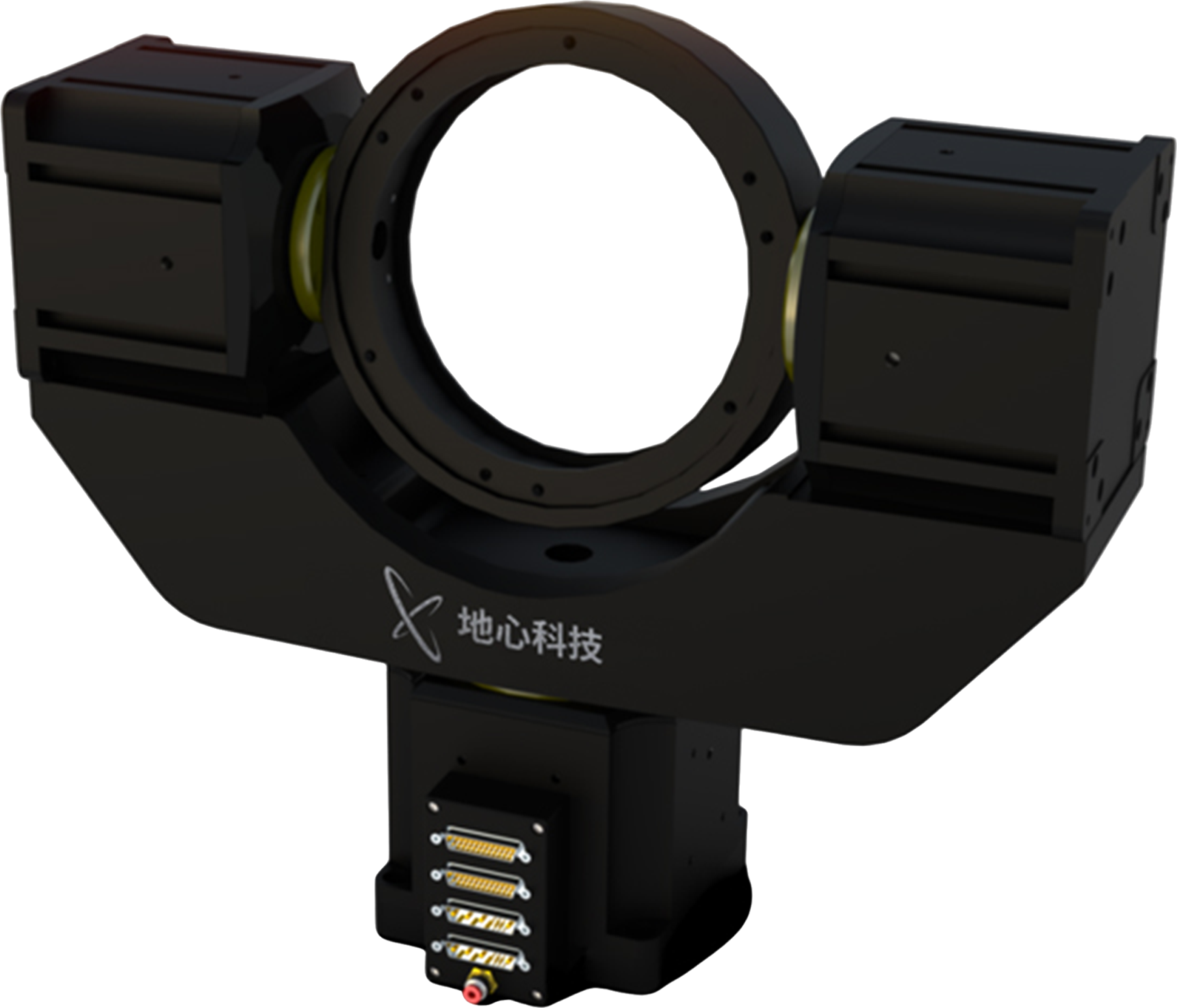

G100/200 Series
Multi‑Axis Gimbal Stage
The G100/200 is a 2‑ or 3‑axis gimbal system. The C‑axis (yaw) rotates independently; when the B‑axis (tilt) rotates, the C‑axis follows; and when the A‑axis (tip) rotates, both B and C axes follow. It functions as a high‑precision optical gimbal, available in Tip/Tilt/Yaw (3‑axis) or Tilt/Yaw (2‑axis) configurations as required. Powered by direct‑drive rotary motors, it integrates high‑quality motors, circular encoders, precision bearings, and slip rings in a compact and refined design. With high instantaneous stiffness and low friction, the dual‑bearing design minimizes tilt errors and maintains performance even under heavy loads.
The G100/200 offers high precision and high speed, with optional slip rings and rotary unions to meet diverse application needs. It is widely used in military laser guidance, LIDAR, airborne target tracking, as well as optoelectronic sensor testing, forward‑looking infrared (FLIR) testing, gyroscope angle testing, and inertial measurement unit acceleration testing.
Download the Manual
Get a Quote
Product Features
Hard-Core Capabilities Drive Exceptional Performance
2‑axis or 3‑axis 360° continuous direct‑drive optical gimbal (Tx/Ty/Tz)
Brushless, slotless servo motor with excellent speed stability
High‑precision circular grating feedback with arcsec‑level positioning accuracy
Integrated slip rings and optional rotary unions
Large clear aperture: 100 mm or 200 mm diameter
Tailored for laser guidance testing & calibration, LIDAR applications
Ideal for sensor testing requiring high speed and high angular accuracy
Specifications
Gain a comprehensive understanding of product information
| 平台型号\Model | G100 | G200 | |
| 有效行程\Travel | 360° | 360° | |
| 镜架尺寸\Clear Aperture Diameter | 100 mm | 200 mm | |
| 转角精度\Accuracy （1） | ±2 arc sec | ±2 arc sec | |
| 双向重复定位精度\Bi-Repeatability （1） | ±1 arc sec | ±1 arc sec | |
| 最小步进量\Minimum Incremental step | 0.5 arc sec | 0.5 arc sec | |
| 轴线摆角\wobble | 10 arc sec | 10 arc sec | |
| 持续扭矩\ Continuous Torque | 方位轴\Azimuth | NA | 3 N.m |
| 俯仰轴\Elevation | NA | 3 N.m | |
| 峰值扭矩\ Peak Torque | 方位轴\Azimuth | NA | 10 N.m |
| 俯仰轴\Elevation | NA | 10 N.m | |
| 正交性\Orthogonality | 10 arc sec | ||
| 最大旋转速度\Maximum Rotary Speed （2） | 方位轴\Azimuth | 500rpm | 500rpm |
| 俯仰轴\Elevation | 100rpm | 100rpm | |
| 最大负载\ Maximum Load | 7 kg | 20 kg | |
| 系统重量\Stage Mass | 10 kg | 30 kg | |
| 平台材质\Material | 铝 | ||
| 平均无故障时间\MTBF | 27,000 Hours | ||
备注：
（1）适配-AS反馈；
（2）速度位平台本身指标，实际应用可能受限于数据采样频率和触发频率；
（3）其他尺寸规格可定制。
Product Dimensions
Precise measurements—dimensions are clear at a glance
备注：
（1）单位：mm。
