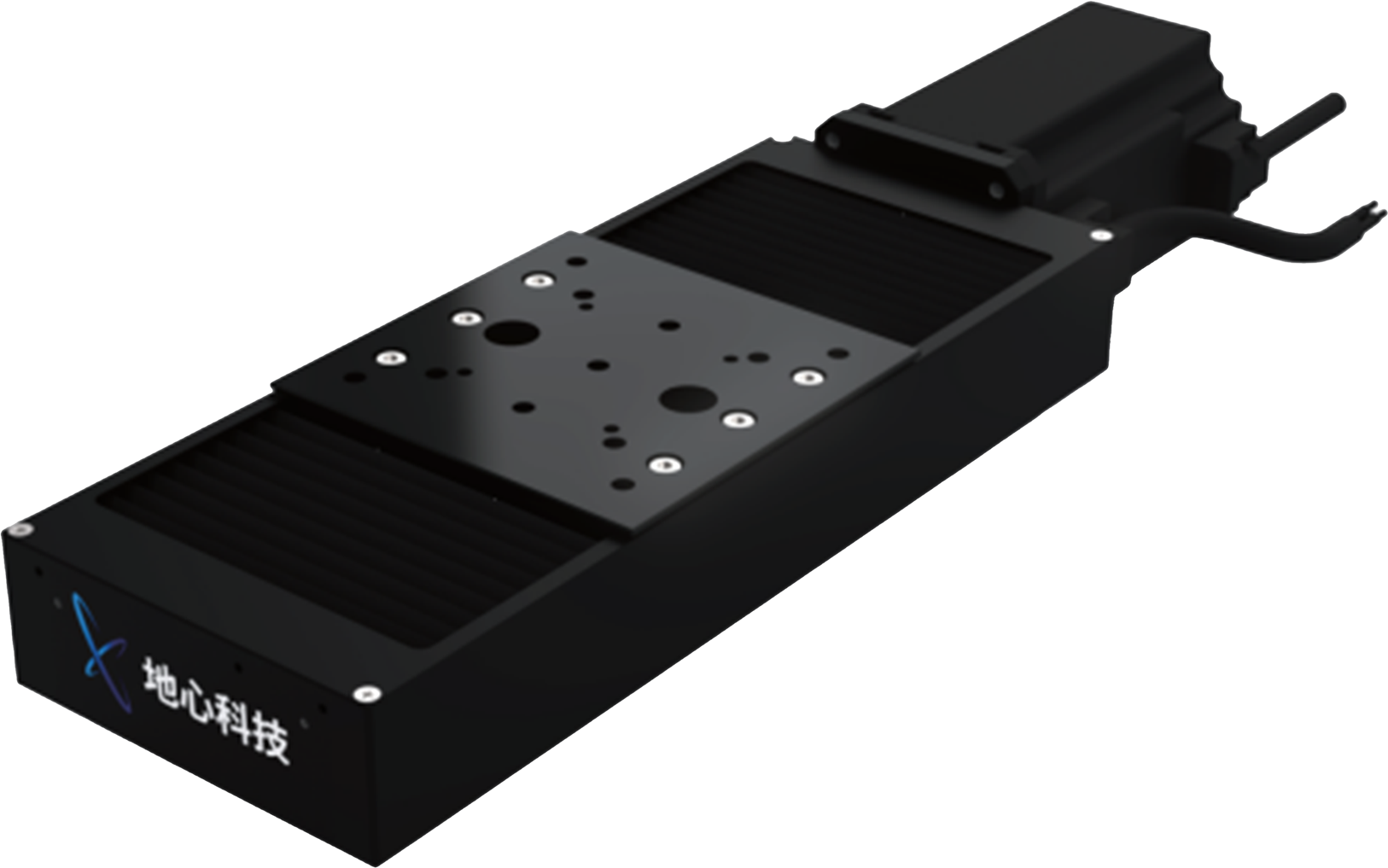

UCS100SD Series
High‑Flexibility Leadscrew‑Driven Linear Stage
The UCS100SD series is a high‑precision positioning stage driven by an AC brushless servo motor with a ball screw, featuring a low profile and compact design. It offers near‑direct‑drive accuracy with greater flexibility in use: it can serve as a horizontal linear axis or, with an optional brake, be mounted vertically as a Z‑axis alongside other stages. Horizontal load capacity is 25 kg; side‑mounted or vertical load capacity is 10 kg. Feedback is provided by a rotary encoder with resolution below 0.1 μm.
As a high‑precision screw‑driven stage, the UCS100SD is distinguished by its low profile, compactness, and rugged durability—with a travel life exceeding 2500 km. It delivers high resolution and repeatability, making it ideal for semiconductor wafer testing and manufacturing, automated microscope observation systems, and high‑precision micro‑positioning applications.
Download the Manual
Get a Quote
Product Features
Hard-Core Capabilities Drive Exceptional Performance
Servo motor with ball screw drive
Low profile and compact design
Rugged mechanical construction
（Flexible configuration for XY or XYZ three‑axis subsystems）
Stroke range: 50 mm to 200 mm
(rotary encoder feedback option available)
Optional brake with power‑off self‑locking function
Specifications
Gain a comprehensive understanding of product information
| 平台型号\Model | UCS100SD-050 | UCS100SD -100 | UCS100SD-150 | |
| 有效行程\Travel | 50 mm | 100 mm | 150 mm | |
| 绝对定位精度\Accuracy (校准后) | ±0.5 μm | ±0.75 μm | ±1.0 μm | |
| 双向重复定位精度\Bi-Repeatability | ±0.3 μm | ±0.3 μm | ±0.3 μm | |
| 俯仰\Pitch | 6 arc sec | 8 arc sec | 10 arc sec | |
| 偏摆\Yaw | 6 arc sec | 8 arc sec | 10 arc sec | |
| 直线度\Straightness | ±1.25 µm | ±1.5 µm | ±1.75 µm | |
| 平面度\Flatness | ±1.25 µm | ±1.5 µm | ±1.75 µm | |
| 平台重量\Stage Mass(No Motor) | 1.5 kg | 1.7 kg | 1.9 kg | |
| 最大负载\Load Capacity（1） | 水平 | 25 kg | ||
| 竖直 | 10 kg | |||
| 分辨率\Resolution | 旋转编码器 | 0.1 μm （2） | ||
| 最大速度\Maximum Speed（3） | 80 mm/s | |||
| 平台材质\Material | 铝 | |||
备注：
（1）有效载荷指标适用于单轴系统，并受限于2500公里行程的丝杠和滚珠寿命。
（2）适配RTTL5000反馈选项；
（3）使用占空比过高可能会影响精度；
（4）默认测试点位置为台面上方25 mm，单轴指标，多轴系统的性能指标与实际载荷和工作点位置有关；
（5）多轴配置或定制应用指标咨询厂商。
Model Selection and Configuration
Scientifically Formulated, Precisely Tailored to Your Needs
| 产品系列 | 行程（mm） | 载物台 | 反馈 |
| UCS100SD | -50 | -TTM | -RTTL5000 |
| -100 | -TTR | -RTTL2500 | |
| -150 | -TTKxx | ||
行程选项
| -50 | 50 mm行程 |
| -100 | 100 mm 行程 |
| -150 | 150 mm行程 |
载物台选项
| -TTM | 载物台公制安装孔 |
| -TTR | 载物台安装孔位，为指定转台设计 |
| -TTKxx | 为客户定制载物台 |
反馈选项
| -RTTL5000 | 2500线旋转编码器 |
| -RTTL2500 | 2500线旋转编码器 |
Product Dimensions
Precise measurements—dimensions are clear at a glance
UCS100SD-050
UCS100SD-100
UCS100SD-150
备注：
（1）单位：mm；
（2）线缆接头未显示。
