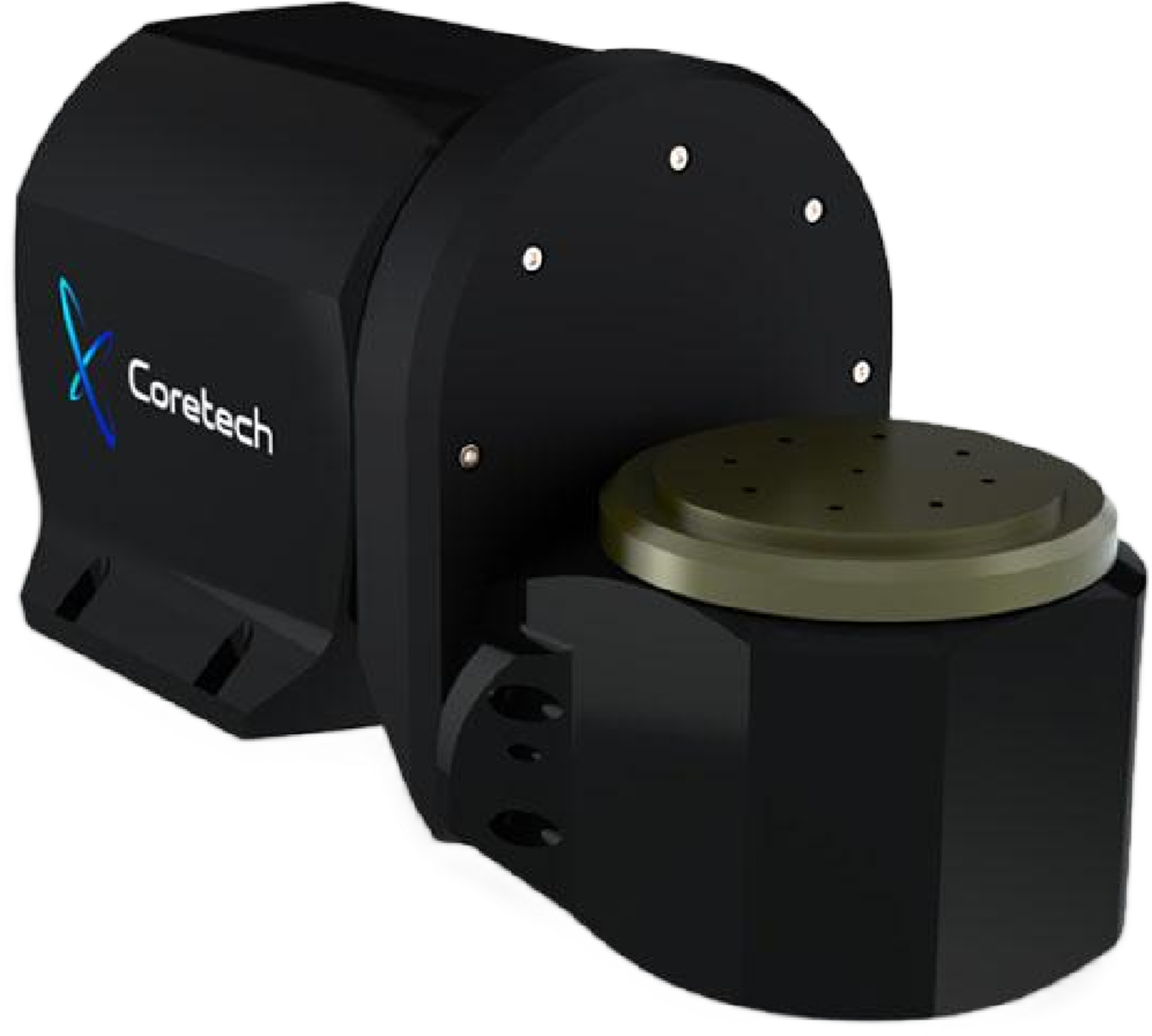

AB100/150 Series
Tilt/Yaw Dual‑Axis Direct‑Drive Rotary Stage
The AB100/150 series is a dual‑axis rotary stage comprising a 110°‑stroke A‑axis (tilt) and a 360° continuous B‑axis (yaw). The B‑axis can rotate independently, while the A‑axis rotation carries the B‑axis along. Two table diameters—100 mm and 150 mm—are available. Driven by direct‑drive rotary motors, it delivers excellent dynamic performance and positioning accuracy: ±3 arcsec accuracy and ±1 arcsec repeatability.
The A‑axis is a horizontal tilt stage with high stiffness and support, while the B‑axis is a lightweight yaw stage with 360° continuous rotation, achieving axial and radial runout below 3 μm. The integrated two‑axis design ensures orthogonality between A and B axes of less than 10 arcsec, and intersection error of less than ±10 μm—demonstrating outstanding mechanical performance.
The AB100/150 is a core component of 5‑axis systems, combinable with XYZ linear stages or used standalone. Typical applications include upright toolhead machining and VPP (virtual pivot point) coordinate transformation. It is widely used in metrology, 3D spatial processing, precision assembly, welding, and other applications requiring arcsec‑level dual‑axis positioning.
Download the Manual
Get a Quote
Product Features
Hard-Core Capabilities Drive Exceptional Performance
Tilt/Yaw dual‑axis direct‑drive rotary stage
A‑axis (tilt): 110° stroke; B‑axis (yaw): 360° continuous rotation
Brushless, slotless servo motor with excellent speed stability
High‑precision circular grating feedback
B‑axis (yaw) speed exceeding 1000 rpm
±3 arcsec accuracy, ±1 arcsec repeatability
Integrated A‑B axis design with high rigidity
Specifications
Gain a comprehensive understanding of product information
| 平台型号\Model | AB100 | AB150 | ||
| A | B | A | B | |
| 有效行程\Travel | ±110° | 360° | ±110° | 360° |
| 转角精度\Accuracy | ±3 arc sec | ±3 arc sec | ±3 arc sec | ±3 arc sec |
| 双向重复定位精度\Bi-Repeatability | ±1 arc sec | ±1 arc sec | ±1 arc sec | ±1 arc sec |
| 运动倾斜误差\Tilt Error Motion | N/A | 5 arcsec | N/A | 5 arcsec |
| 轴跳\Axial Error Motion (1) | N/A | 1.5 μm | N/A | 1.5 μm |
| 径跳\Radial Error Motion (1) | N/A | 3 μm | N/A | 3 μm |
| 两轴正交性 \Orthogonality | 10 arc-sec | 10 arc-sec | ||
| 两轴交点误差\Axis Intersection | ±10 μm | ±10 μm | ||
| 持续扭矩\ Continuous Torque | 12 N.m | 0.7 N.m | 12 N.m | 3 N.m |
| 峰值扭矩（持续）\Peak Torque | 20 N.m | 3 N.m | 20 N.m | 10 N.m |
| 最高转速\Maximum Speed (2) | 720 °/sec | 1000rpm | 720 °/sec | 600rpm |
| 最大负载\Load Capacity | 15 kg | 25kg | ||
| 转台重量 \Stage Mass | 25 kg | 50 kg | ||
| 平台材质\Material | 铝 | 铝 | ||
| 平均无故障时间\MTBF | 27,000 Hours | 27,000 Hours | ||
备注：
（1）跳动指标在转速为60rpm时测得；
（2）空载，需配置相应功率的放大器；
（3）其他尺寸规格可定制。
Model Selection and Configuration
Scientifically Formulated, Precisely Tailored to Your Needs
| 产品系列 | 反馈 | Yaw轴 | 抱闸 |
| AB100 | -AS | -Y0 | -BKY |
| AB150 | -TTL50 | -YXXX | -BKN |
反馈选项
| -AS | VPP 1伏正弦模拟量输入 |
| -TTL50 | TTL 50倍细分 |
Yaw轴配置选项
| -Y0 | B轴台面高度与A轴旋转中心重合，不需要平衡块 |
| -YXXX | 指定B轴台面与A轴旋转轴距离XXXmm |
抱闸选项
| -BKY | A轴（Tilt）带抱闸 |
| -BKN | A轴（Tilt）不带抱闸 |
Product Dimensions
Precise measurements—dimensions are clear at a glance
AB100
AB150
备注：
（1）单位：mm。
