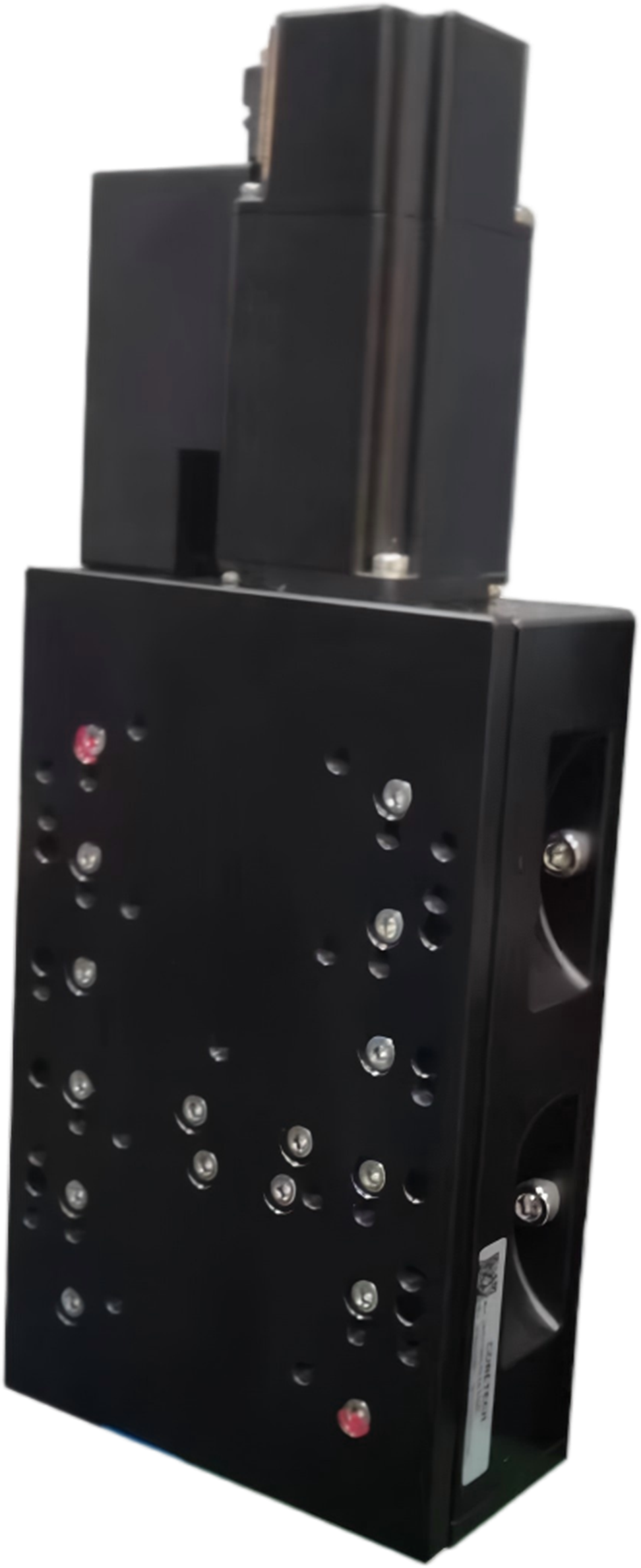

The CRS115SD series is a high‑precision mechanical motion stage driven by an AC brushless servo motor with a ball screw, featuring crossed‑roller guides. It delivers superior minimum step resolution compared to conventional screw‑driven stages—achieving 50 nm minimum step size, and down to 25 nm with linear amplifiers, with repeatability better than ±0.2 μm. It offers near‑direct‑drive accuracy with greater flexibility: it can serve as a horizontal linear axis or, with an optional brake, be mounted vertically as a Z‑axis alongside other stages. Feedback options include rotary encoders (resolution < 0.2 μm) and linear scales (resolution down to 1 nm).

The CRS115SD is a high‑precision ball screw stage distinguished by superior repeatability and finer step resolution over standard screw‑driven platforms. It is widely used in laser processing (e.g., OLED cutting, PCB drilling) for laser or galvanometer focusing, surface metrology vertical scanning, CNC machining, biotechnology, and IC packaging—providing a sub‑micron positioning solution for diverse applications.
