SC1 Series

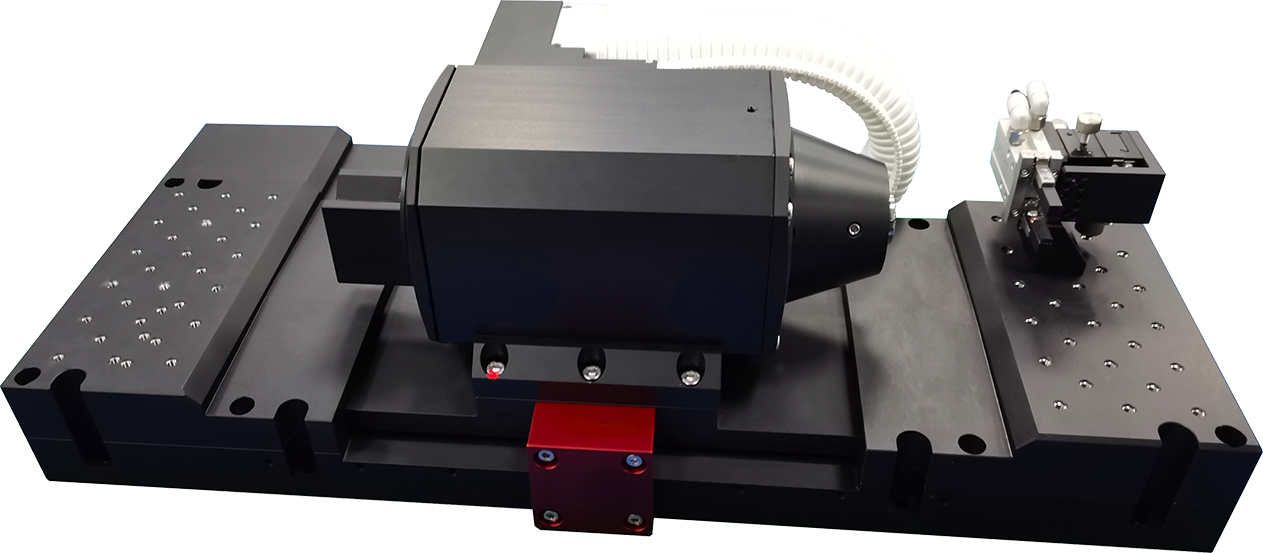

Integrated Linear‑Rotary Stage for Waveguide Processing and Cardiovascular Stent Cutting
The SC1 is a highly integrated precision stage combining a linear axis and a rotary axis in one compact unit. The linear axis is driven by CoreTech’s proprietary direct‑drive linear motor, and the rotary axis by a proprietary S‑type direct‑drive motor, offering fast response and high positioning accuracy. Both axes employ non‑contact direct‑drive motors and encoders, significantly improving efficiency and maintenance‑free operation compared to conventional drives. The linear and rotary encoders are directly mounted to the load table, ensuring high system accuracy and repeatability throughout the platform’s lifetime.
The SC1 series supports custom fixtures—such as bushing alignment and manual or automatic material pre‑loading. Paired with a high‑performance motion controller, it easily performs linear‑rotary 2‑axis interpolation, enabling position‑based real‑time triggering along the synthesized trajectory for precise synchronization of laser and cutting paths. The system adapts to cutting speed to maintain optimal laser power coupling and minimize geometric errors in dense contour features. It is widely used in waveguide processing and cardiovascular stent cutting.
Download the Manual
Get a Quote
Product Features
Hard-Core Capabilities Drive Exceptional Performance
Direct‑drive linear motor and direct‑drive rotary motor
Synchronized linear‑rotary motion coordination
Designed for stent and tube processing
Customizable collet diameter from 0.3 mm to 10 mm, with low‑friction rotary union
Linear axis repeatability: ±200 nm; rotary axis repeatability: ±4 arcsec
Customizable through‑hole and stent loading/unloading
Theta axis max speed: > 1500 rpm
Specifications
Gain a comprehensive understanding of product information
| 平台型号\Model | SC1-100 | |
| 直线轴行程\Linear Travel | 100 mm | |
| 旋转轴行程\Rotation Travel | ±360°连续 | |
| 直线轴精度\ Linear Accuracy | ±0.5 μm | |
| 直线轴重复定位精度\ Linear Bi-Repeatability | ±0.2 μm | |
| 旋转轴精度\ Rotation Accuracy | ±13 arc sec | |
| 旋转轴重复定位精度\ Rotation Bi-Repeatability | ±4 arc sec | |
| 直线轴俯仰\Pitch | 4 arc sec | |
| 直线轴摆\Yaw | 3 arc sec | |
| 直线轴直线度\Straightness | ±1 μm | |
| 直线轴平面度\Flatness | ±1 μm | |
| 最大速度\Maximum Speed （1） | 300mm/s, 1000rpm | |
| 夹头类型\Collect Type | 3C | |
| 端跳\Collect Runout | 小于30μm (距离夹头3mm位置测量) | |
| 最小系统气压\Minimum System Air Pressure | 100 psi | |
| 供气要求\Air Requirement | 无油污压缩空气或99.99%氮气，建议加0.25μm空气过滤器 | |
| 平台重量\Stage Mass | 12 kg | |
| 最大负载\Load Capacity（2） | 轴向\Axial | 2 kg |
| 径向\Radial | 0.5 kg | |
| 平台材质\Material | 铝 | |
| 平均无故障时间\MTBF | 27,000 Hours | |
备注：
（1）空载，需配置相应功率的放大器；
（2）负载能力受限于夹头选型，实际负载能力请联系地心科技应用工程师；
（3）其他行程可定制。
Product Dimensions
Precise measurements—dimensions are clear at a glance
备注：
（1）单位：mm。
