DX Series

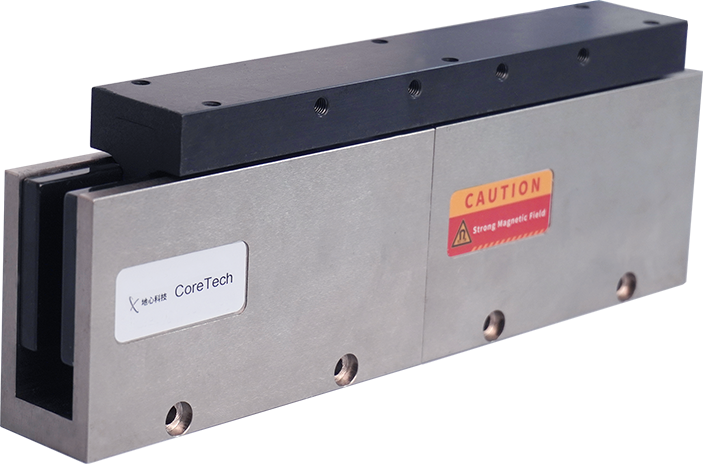

Ironless Linear Motor – Precisely Balances Thrust and Efficiency
Coretech’s DX series linear motors precisely balance thrust and efficiency, making them well‑suited for large and medium‑sized equipment. They deliver excellent dynamic response with no mechanical contact and zero cogging, effectively minimizing wear and vibration for smoother motion and superior positioning accuracy.
Extremely low maintenance costs and long‑term reliability make them ideal for demanding applications in semiconductor manufacturing, precision machining, industrial automation, medical equipment, vision systems, and other high‑precision fields.
Download the Manual
Get a Quote
Product Features
Hard-Core Capabilities Drive Exceptional Performance
Precisely balanced thrust and efficiency, tailored for large and medium‑sized equipment
Ironless construction with zero cogging for smoother motion and higher precision
Greatly simplifies design and assembly processes, reducing system integration complexity
Low maintenance cost, offering exceptional value for high‑end applications
Specifications
Gain a comprehensive understanding of product information
| 电机型号 | 单位 | DX-205 | DX-265 | DX-326 |
| 持续推力 | N（牛） | 173 | 226 | 262 |
| 峰值推力 | N（牛） | 1011.7 | 1215 | 1440 |
| BEMF(Line-Line， Max) | V/(m/s) | 21.3 | 30.7 | 53 |
| 持续电流 | A（峰值） | 5.56 | 5.35 | 5.47 |
| A（rms） | 4.3 | 4.2 | 3.9 | |
| 峰值电流 | A（峰值） | 35.5 | 32 | 30.2 |
| A（rms） | 25.1 | 22.6 | 21.4 | |
| 力常数 | N/A(峰值) | 28.5 | 38.4 | 46.13 |
| N/A(rms) | 40.3 | 53.8 | 67.3 | |
| 电机常数 | N/sqrt(W) | 14.11 | 16.4 | 17.6 |
| 电阻，25度（line to line） | ohm | 4.6 | 6 | 7.7 |
| 电感（Line to line） | mH | 2.7 | 3.7 | 4.7 |
| 热阻 | 度/W | 0.8 | 0.7 | 0.6 |
| 最大相电压 | Vdc | 340 | ||
| 线圈重量 | kg | 0.9 | 1.1 | 1.4 |
| 线圈长度 | mm | 205 | 265 | 326 |
| 磁轨重量 | kg/m | 11 | ||
| 磁距 | mm | 30.48 | ||
