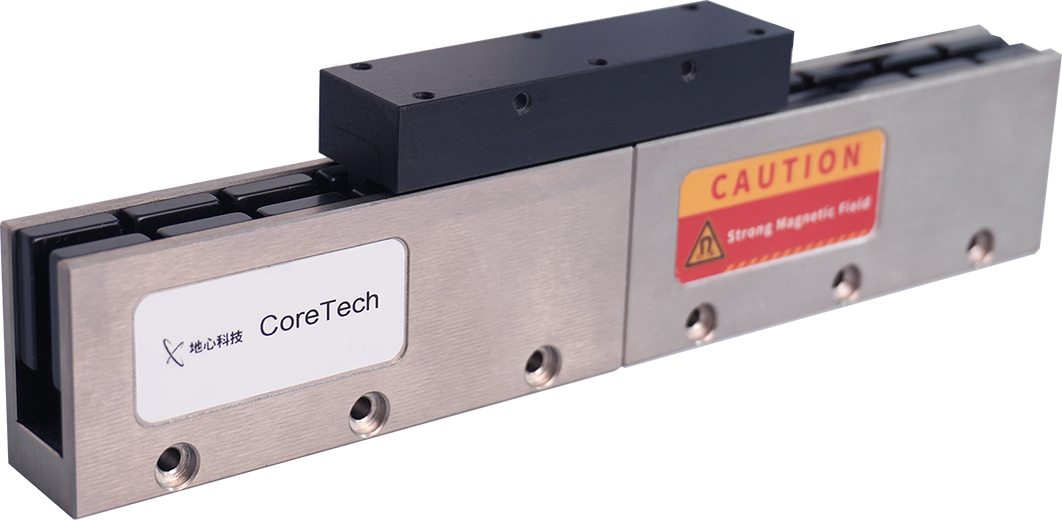

DXUC Series
Ironless Linear Motor – Lightweight Design
Coretech’s DXUC series linear motors feature a lightweight design with a compact footprint, making them ideal for light to medium loads. They deliver excellent dynamic response with no mechanical contact and zero cogging, effectively minimizing wear and vibration for smoother motion and superior positioning accuracy.
Extremely low maintenance costs and long‑term reliability make them suitable for demanding applications in semiconductor manufacturing, precision machining, industrial automation, medical equipment, vision systems, and other high‑precision fields.
Download the Manual
Get a Quote
Product Features
Hard-Core Capabilities Drive Exceptional Performance
Lightweight design, compact footprint, suitable for light to medium loads
Ironless construction with zero cogging for smoother motion and higher precision
High dynamic response for short‑stroke high‑speed motion
Low maintenance cost, ideal for high‑value‑added production lines
Specifications
Gain a comprehensive understanding of product information
| 电机型号 | 单位 | DXUC-76 | DXUC-124 |
| 持续推力 | N（牛） | 24.4 | 41.2 |
| 峰值推力 | N（牛） | 170.4 | 243.7 |
| BEMF(Line-Line， Max) | V/(m/s) | 8.2 | 14.5 |
| 持续电流 | A（峰值） | 3.56 | 3.67 |
| A（rms） | 2.52 | 2.6 | |
| 峰值电流 | A（峰值） | 23.2 | 23.8 |
| A（rms） | 17.6 | 17.7 | |
| 力常数 | N/A(峰值) | 6.6 | 12.4 |
| N/A(rms) | 9.3 | 17.3 | |
| 电机常数 | N/sqrt(W) | 3.35 | 4.53 |
| 电阻，25度（line to line） | ohm | 3.5 | 5.9 |
| 电感（Line to line） | mH | 0.55 | 1 |
| 热阻 | 度/W | 2.2 | 1.29 |
| 最大相电压 | Vdc | 340 | |
| 线圈重量 | kg | 0.12 | 0.2 |
| 线圈长度 | mm | 76 | 124 |
| 磁轨重量 | kg/m | 3.4 | |
| 磁距 | mm | 16 | |
Model Selection and Configuration
Scientifically Formulated, Precisely Tailored to Your Needs
动子型号：
| 线圈型号 | 描述 |
| DXUC-76 | 长度76mm |
| DXUC-124 | 长度124mm |
| 风冷选项 | 描述 |
| -NC | 未包含风冷配件 |
| 霍尔选项 | 描述 |
| -NH | 未包含霍尔效应传感器 |
| 电缆选项 | 描述 |
| -750 | 750mm高柔性电缆 |
定子型号：
| 定子型号 | 描述 |
| MPUC-64 | 长度64mm |
| MPUC-96 | 长度96mm |
Product Dimensions
Precise measurements—dimensions are clear at a glance
